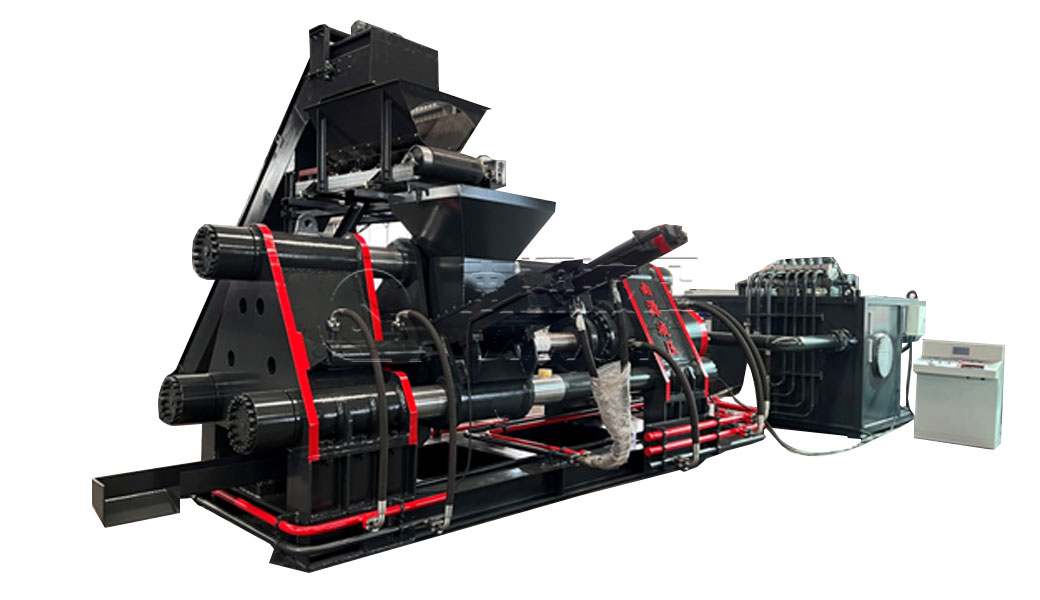

Y83 Series Briquetting Presses


Function
It is suitable for compacting steel chips, cast iron chips, copper chips and aluminum chips into high density cylindrical cladding blocks for recycling and smelting, especially casting iron chips can replace cast iron after compacting.

Features
1. Hydraulic drive, high working efficiency.
2. Smooth operation, only simple equipment foundation.
3. Adopt PLC control, can choose manual or automatic operation.

Technical Specification

Model Cyl.Force(ton) Press Mould(mm) Briquet Size(mm) Production Rate(kg/hr) Power(kw)
Y83W-630 630 Φ200×550 Φ200×(160~200) 4500~5500 90
Y83W-1000 1000 Φ240×600 Φ240×(190~240) 9000~11000 225
Y83W-1250 1250 Φ300×700 Φ300×(220~270) 15000~18000 320

Technical Specification

Model Cyl.Force(ton) Press Mould(mm) Briquet Size(mm) Production Rate(kg/hr) Power(kw)
Y83-250 250 Φ110×180 Φ110×(50~70) 600~800 22
Φ120×180 Φ120×(50~70)
Y83-315 315 Φ120×180 Φ120×(50~70) 800~1100 30
Φ140×180 Φ140×(50~70)
Y83-400 400 Φ140×300 Φ140×(70~100) 1300~1600 37
Φ160×300 Φ160×(70~100)
Y83-500 500 Φ160×300 Φ160×(70~100) 1700~2300 45
Φ180×300 Φ180×(70~100)
Y83-630 630 Φ180×400 Φ180×(100~140) 2800~3500 74
Φ200×400 Φ200×(100~140)
