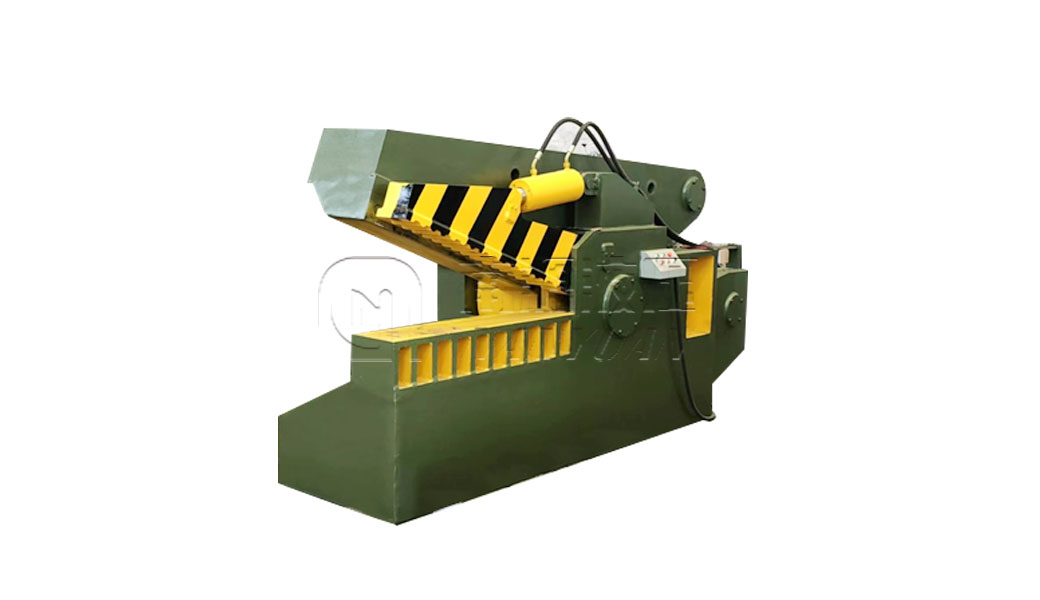

Q43 Series Crocodile Type Hydraulic Shears


Function
It is suitable for cold shearing of metal profiles and metal structural parts with various cross-section shapes to process them into qualified charge. It is suitable for steel industry, non-ferrous metal industry, scrap steel processing and distribution center (base), renewable resource processing enterprises and scrap car dismantling enterprises.

Features
1. Mechanical, electrical and hydraulic integrated control; It can be started and stopped at any position, easy to realize overload protection; It can be equipped with diesel engine as backup power supply.
2. According to the use of the need to choose a single, continuous operation.
3. The installation of the equipment without anchor bolt fixed, convenient production or equipment layout adjustment.

Technical Specification

Model Max. Shear Force (ton) Blade length (mm) Max.Cutting Size (kw) Shearing Frequency (times/) Motor (kw)
Q43-63 63 600/800 30×30φ40 10-12 7.5
Q43-120 120 600/800 50×50φ55 10-12 15
Q43-160 160 700/800 55×55φ63 10-12 18.5
Q43-200 200 800/1000 65×65φ70 10-12 22
Q43-250 250 1000/1200 70×70φ80 10-12 2×15
Q43-315 315 1000/1200 75×75φ85 10-12 2×18.5
Q43-400 400 1500 90×90φ100 8-11 2×22
Q43-500 500 1500 100×100φ110 8-11 2×30
Q43-630 630 1600 110×110φ120 4-8 2×37
