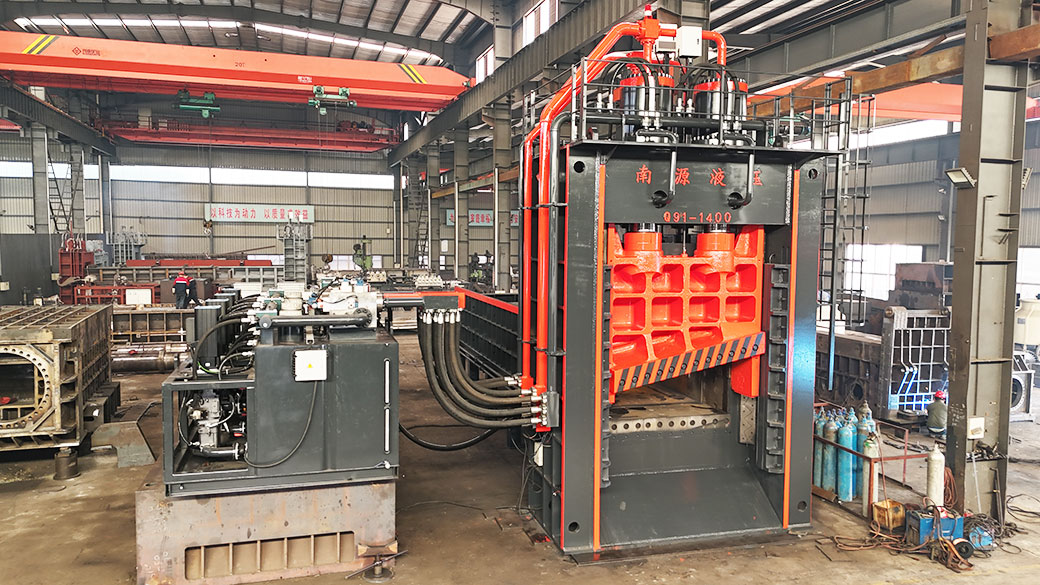

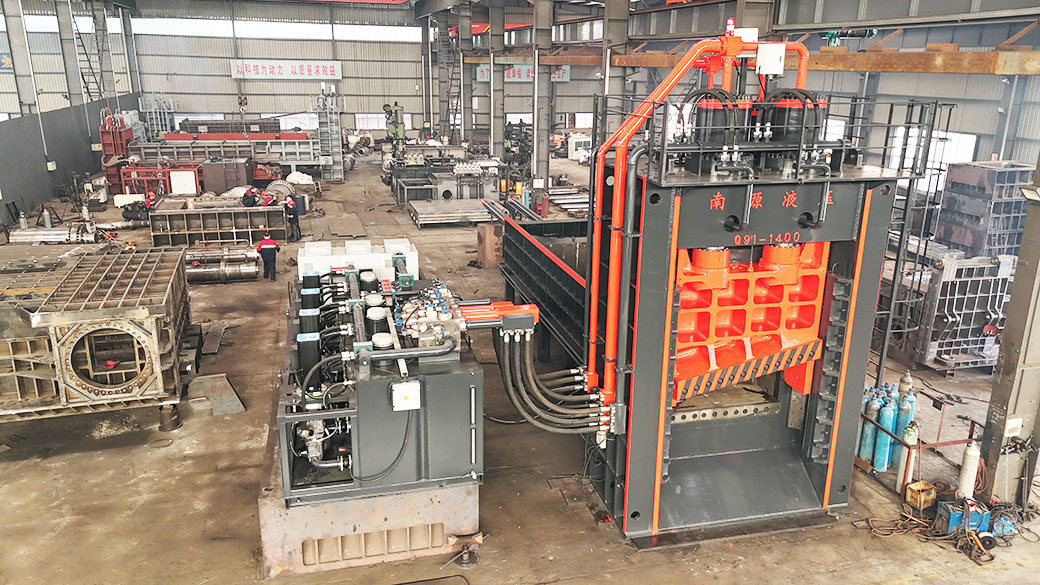

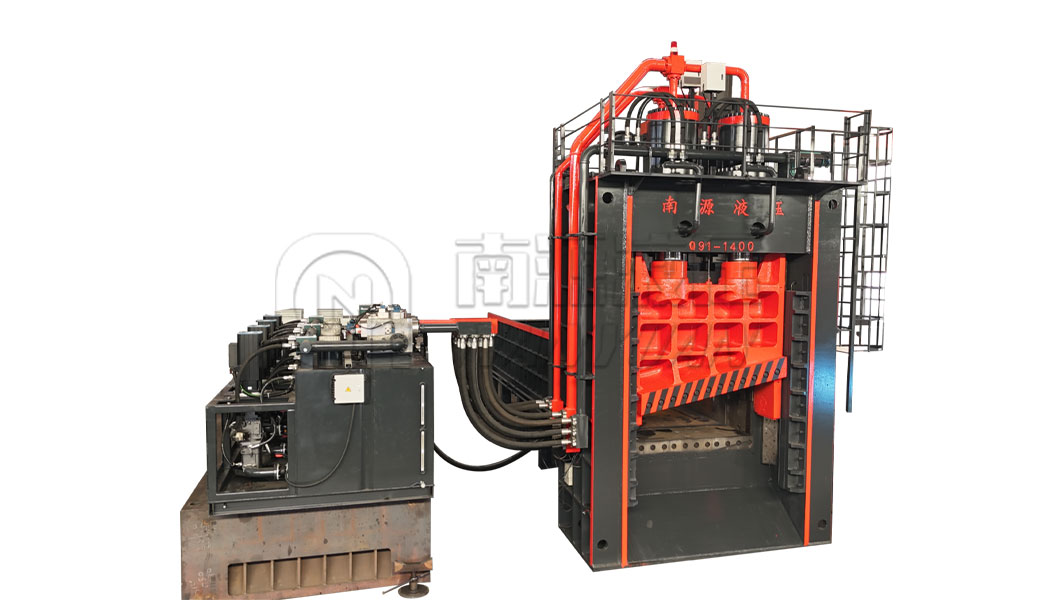

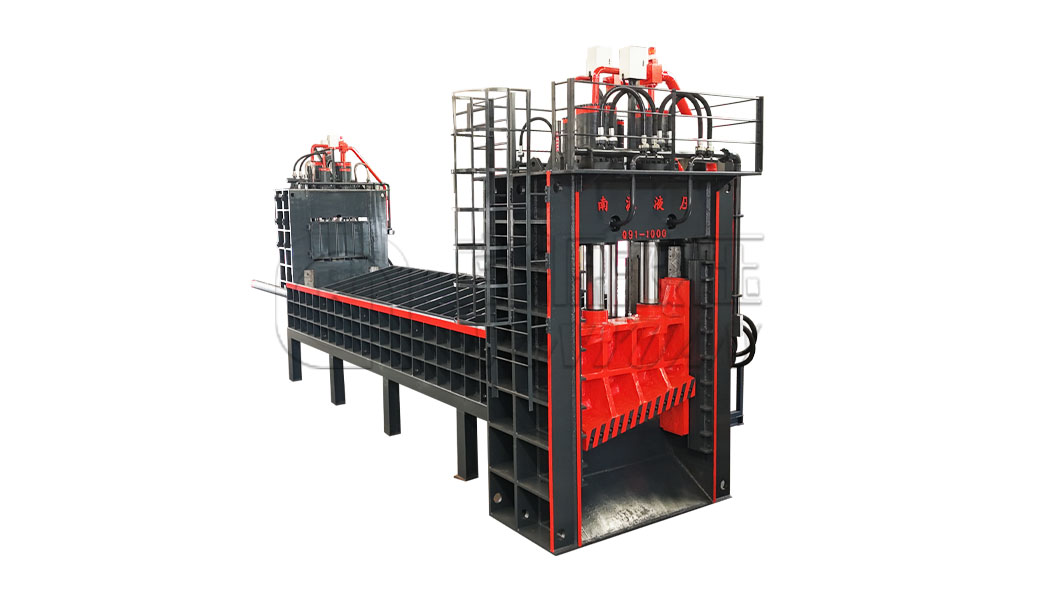

Q91Y Series Hydraulic Scrap Shears-Open Press Box


Note: door cover and servo motor can be installed according to customer's requirement

Function
It is mainly used to cut all kinds of low carbon light and thin production and living scrap steel, scrap automobile shell, light metal structure large pieces and profiles made of steel into scrap steel with charge. It is an ideal equipment for steel mills, non-ferrous metal smelting industry, precision casting industry and raw material manufacturers.

Features
1. The use of upper compression and compression on both sides of the scrap shaping and segmented feeding way, coupled with the design of large material box, so good adaptability to scrap raw materials, high density after shear.
2. The box opening area is large, suitable for mechanical feeding, suitable for loose light and thin scrap steel and steel structure, especially suitable for steel pipe, steel plate, channel profile shearing.
3. Adopt the screen display control panel, automatic integrated control, stable and reliable operation. Optional wireless remote control device, single control production line equipment.
4. The use of reliable large flow logic valve control, independent filtration and cooling system, can ensure the system efficient and reliable operation. The comprehensive application of constant power variable and differential fast technology can save about 25% energy while ensuring output, and the energy consumption of steel processing per ton is lower than the requirements of industry standards.

Technical Specification

Model Max. Shear Force (ton) Press Box Size (mm) Blade length (mm) Production rate (tons/hr) Cutting frequency (times/min) Main motor power (kw)
Q91Y-315 315 6000×1200×700 1200 3-5T 3 2×30
Q91Y-400 400 6000×1400×700 1400 4-7T 3 2×45
Q91Y-500 500 6000×1600×800 1600 6-10T 3 3×45
Q91Y-630 630 8000×1800×900 1800 10-15T 3 4×45
Q91Y-800 800 8000×2000×900 2000 12-18T 3 3×90
Q91Y-1000A 1000 8000×2000×1000 2000 15-23T 3 4×90
Q91Y-1000B 1000 8000×2500×1000 2500 20-25T 3 4×90
Q91Y-1250A 1250 8000×2000×1400 2000 20-25T 3 5×90
Q91Y-1250B 1250 8000×2500×1400 2500 25-30T 3 5×90
